Home Products 50mm Stainless Steel Weepa

50mm Stainless Steel Weepa

View installation guides

Product Overview

  • A luxury weep hole former designed for prestige projects made entirely from marine grade 316 stainless steel.
  • A special size for use with 50mm high bricks commonly known as 'split' or 'roman' bricks.
  • When installed in masonry construction it is compliant by design with Bushfire Attack Levels of AS3959:2018 BAL-LOW, BAL-12.5, BAL-19, BAL-29, BAL-40 and BAL-FZ.
  • Installed by the bricklayer during construction.
  • Suitable for use in face brick or rendered brick and block.
  • The orange mortar protector is removed after installation, leaving a clean and beautiful finish.
  • Excludes pests.
  • Product Code 20-SSSW
Find a Reseller
SS Weepa 2 sizes
SS Weepa 50 3D
DSC03255

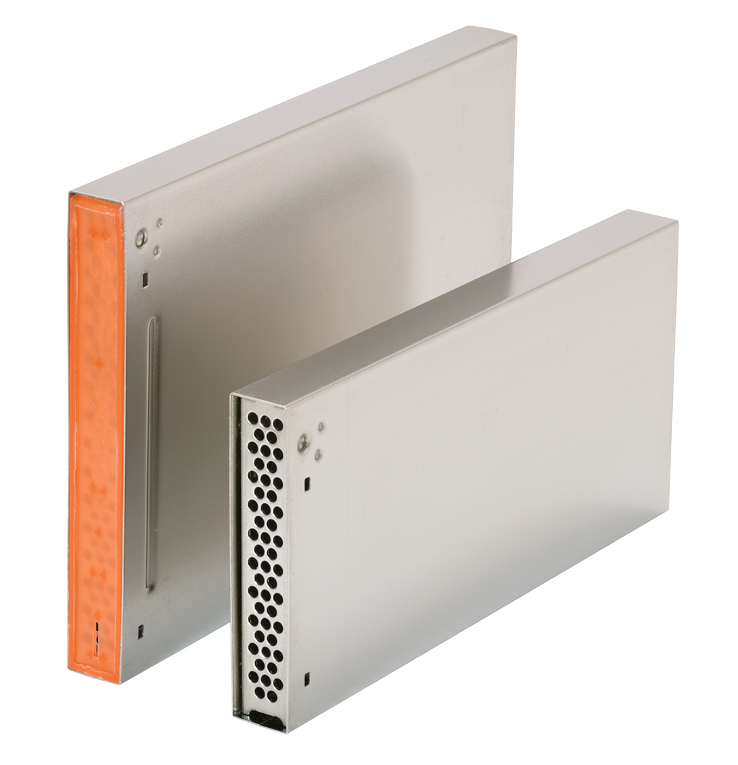

SS Weepa 2 sizes

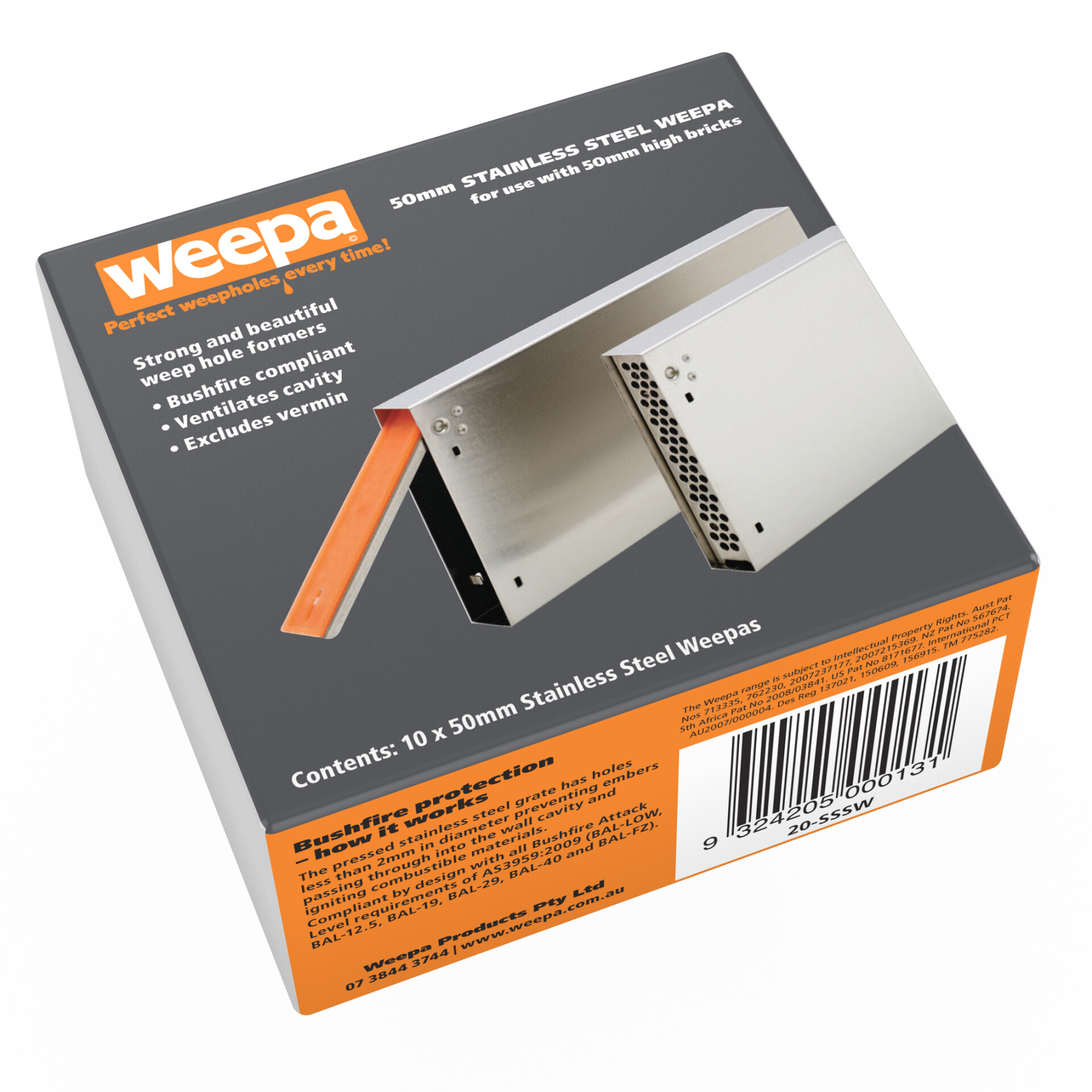

SS Weepa 50 3D

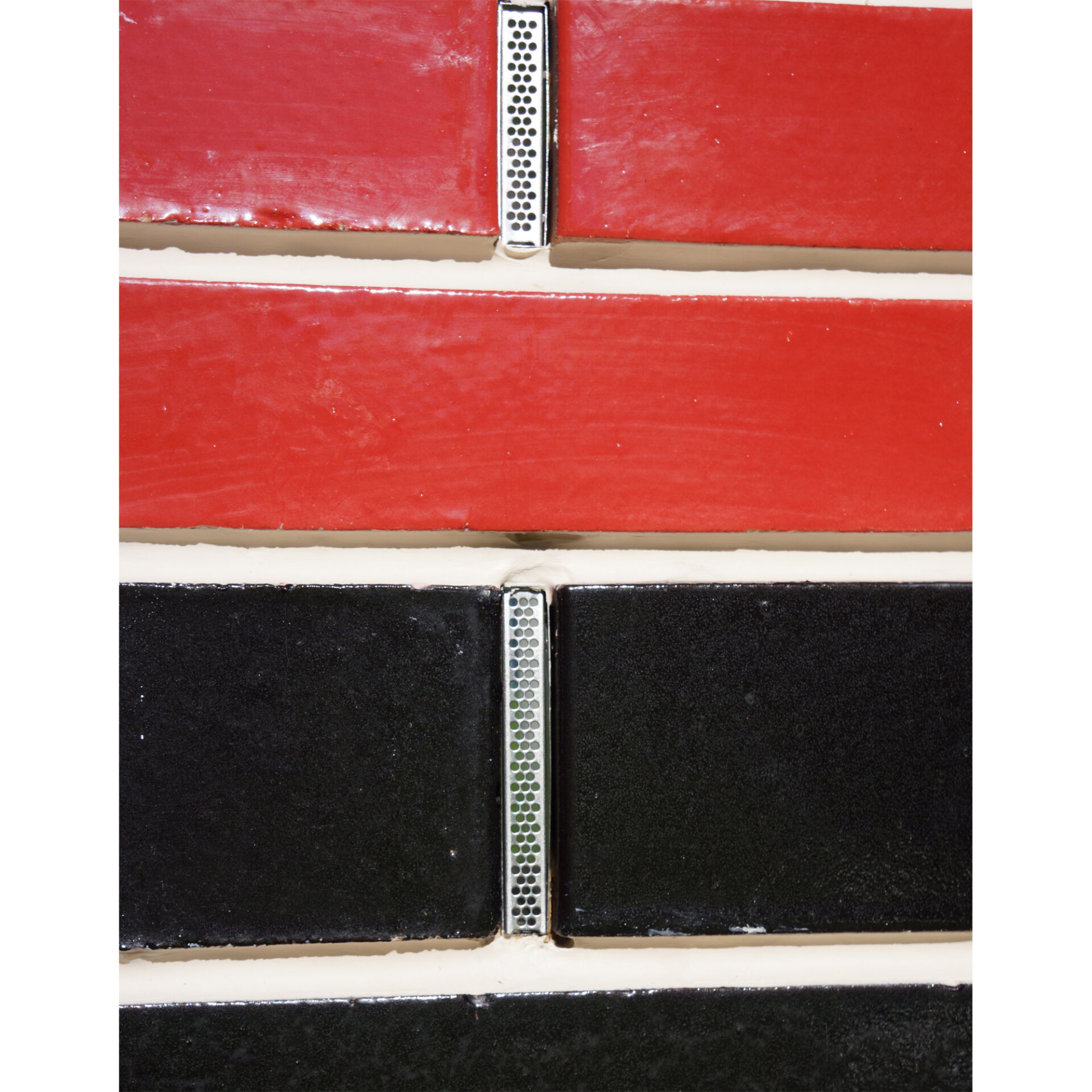

DSC03255
Download installation guide

Videos

Installation Instructions

Features

Bushfire Protection

The pressed stainless steel grate has holes less than 2mm in diameter. This means that embers cannot pass through into the wall cavity and ignite combustible materials.

By design it is compliant with all Bushfire Attack Level (BAL) requirements of AS3959:2009 including BAL-12.5, BAL-19, BAL-29 and BAL-40 and BAL-FZ.

Hide installation guide

Installation guides

Download Installation Guide

Weepas in Masonry

Step 1 Standard Masonry

Step 1

Install the Weepa between bricks or blocks, at specified intervals and firmly in contact with the flashing. For rendering, set out a few millimetres.

Step 2 Standard Masonry

Step 2

When rendering, the Weepa needs to be loosened in the masonry so the renderer can adjust the Weepa in and out. Grab internal rib to adjust Weepa in and out.

Step 3 Standard Masonry

Step 3

After clean up, use a small, flat screwdriver to prise the mortar cover up at the bottom.

Step 4 Standard Masonry

Step 4

Close the grate assembly for an attractive and vermin proof weep hole.

Weepas in Rendered Masonry

Step 1 Standard Render

Step 1

Make sure the Weepa is installed when the masonry wall is built.

Step 2 Standard Render

Step 2

Loosen the Weepa and pull out proud of masonry.

Step 3 Standard Render

Step 3

Lay on render around the Weepa.

Step 4 Standard Render

Step 4

Screed off around the Weepa.

Step 5 Standard Render

Step 5

Pat the Weepa flush with the surface.

Step 6 Standard Render

Step 6

Float around the Weepa.

Step 7 Standard Render

Step 7

Sponge finish.
For easy removal later, wipe the mortar guard clean now, then again after painting.

Step 6 Standard Render

Step 8

After finish and cleanup remove the mortar guard for beautiful weepholes.

Installing Weepas during Construction
